Compact String Trigger Kit for D5 and D6 CPU Cards

$385.00

1 in stock

SKU: 336208692369 Categories: , ,

More Information

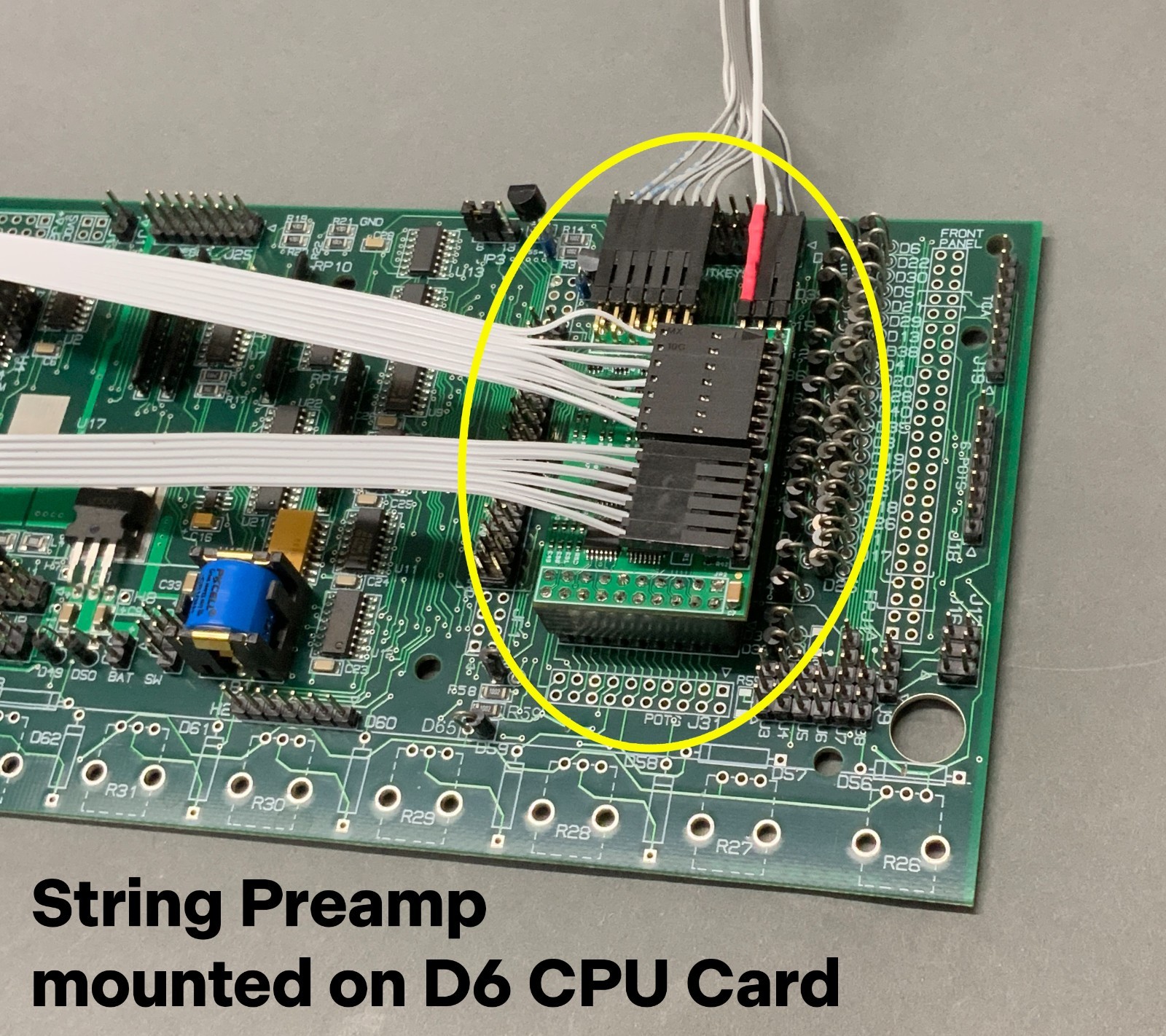

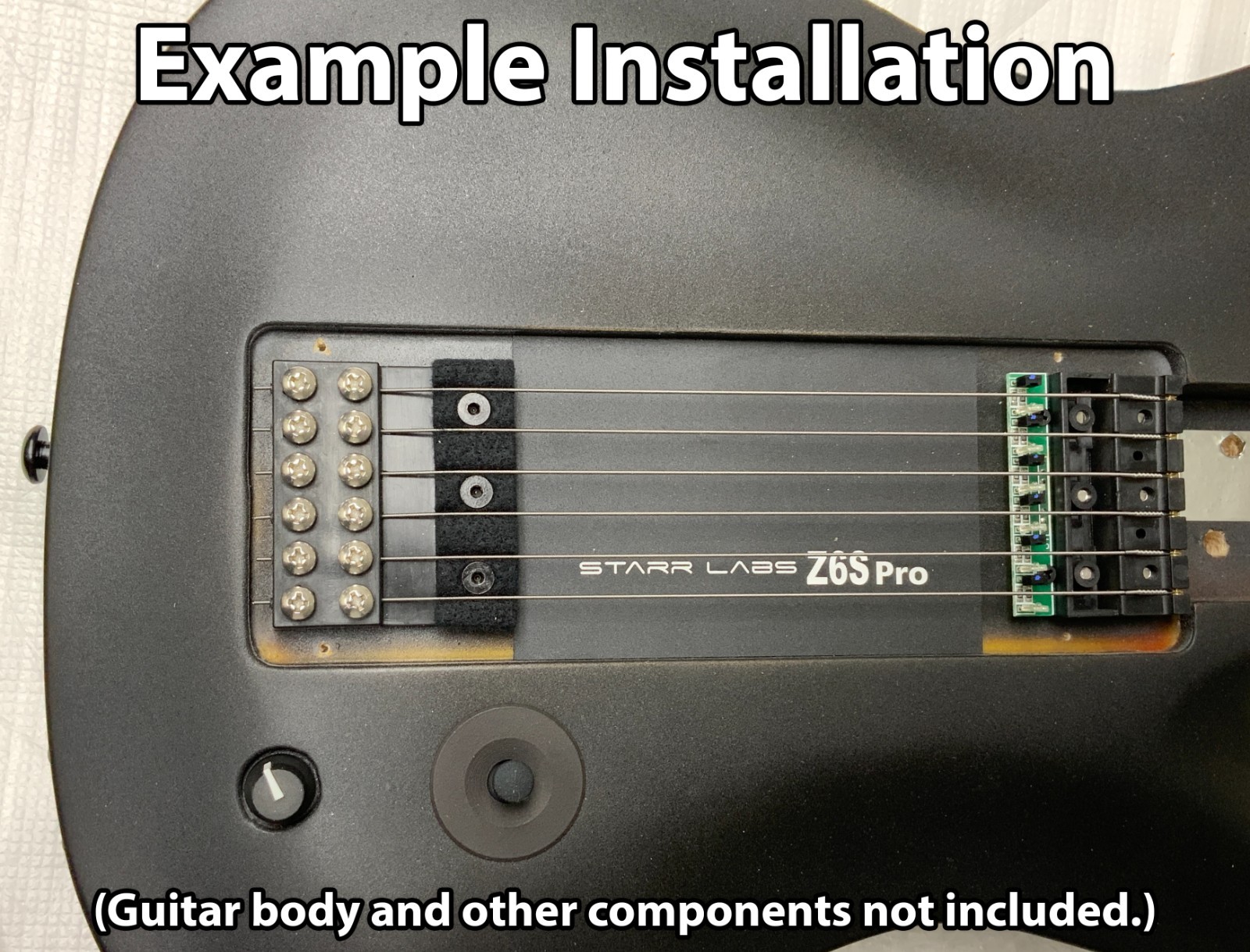

This is a complete string triggers system, as used on Starr Labs Ztar MIDI guitars. Enthusiasts wishing to build their own custom instrument can connect this system to a Starr Labs D5 or D6 CPU card to add pluckable string triggers to their creation. This is the compact version with drastically smaller String Preamp PCB, which mounts directly to the D5 or D6 CPU Cards. The trim pots (to adjust string sensitivity) are now on a separate PCB, allowing for easy-access placement on your custom instrument. You can installed the trim pots in a location that’s easy to access for routine adjustments, while the String Preamp Card attaches directly to you the D5 or D6 CPU card. (D5 or D6 CPU card NOT included)

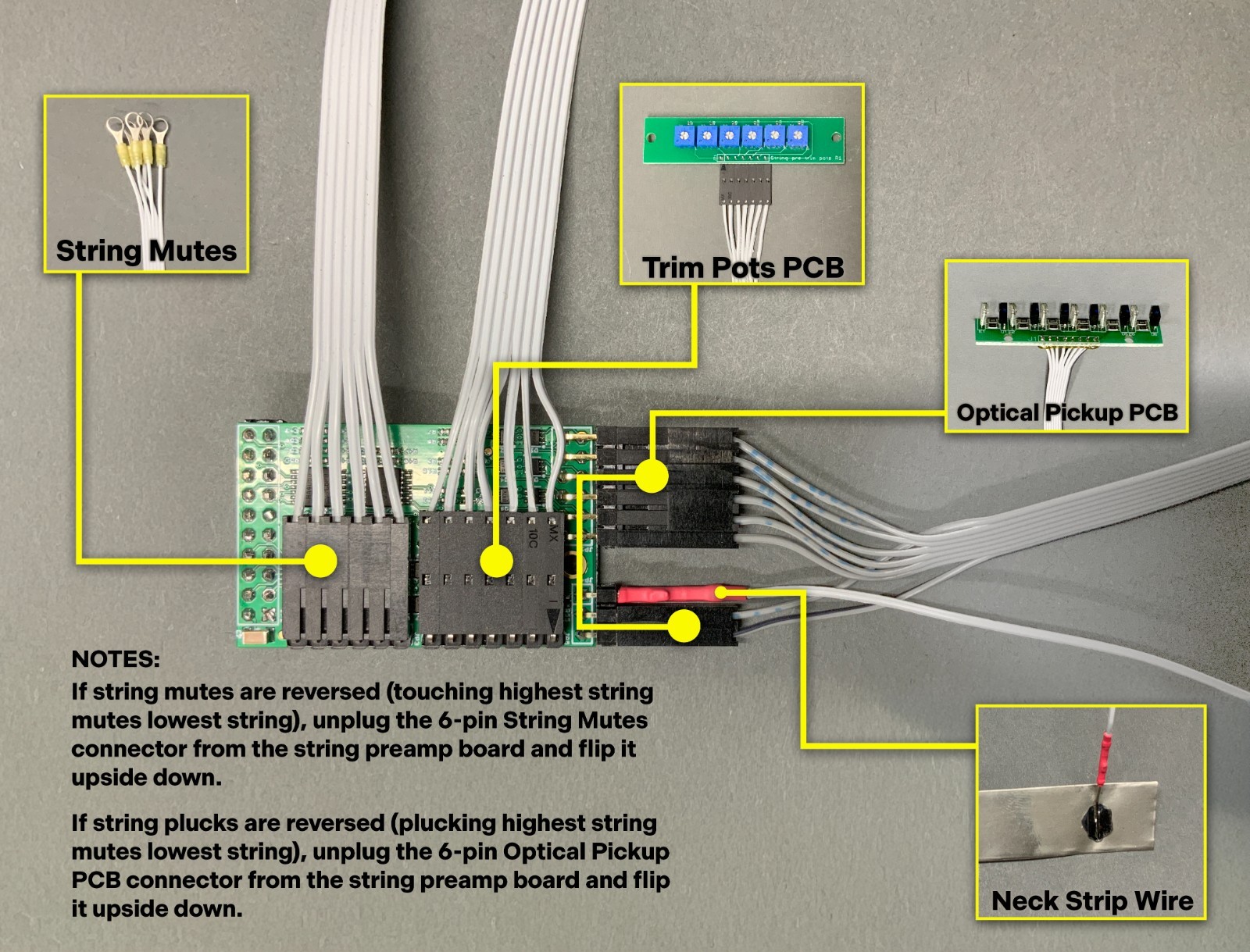

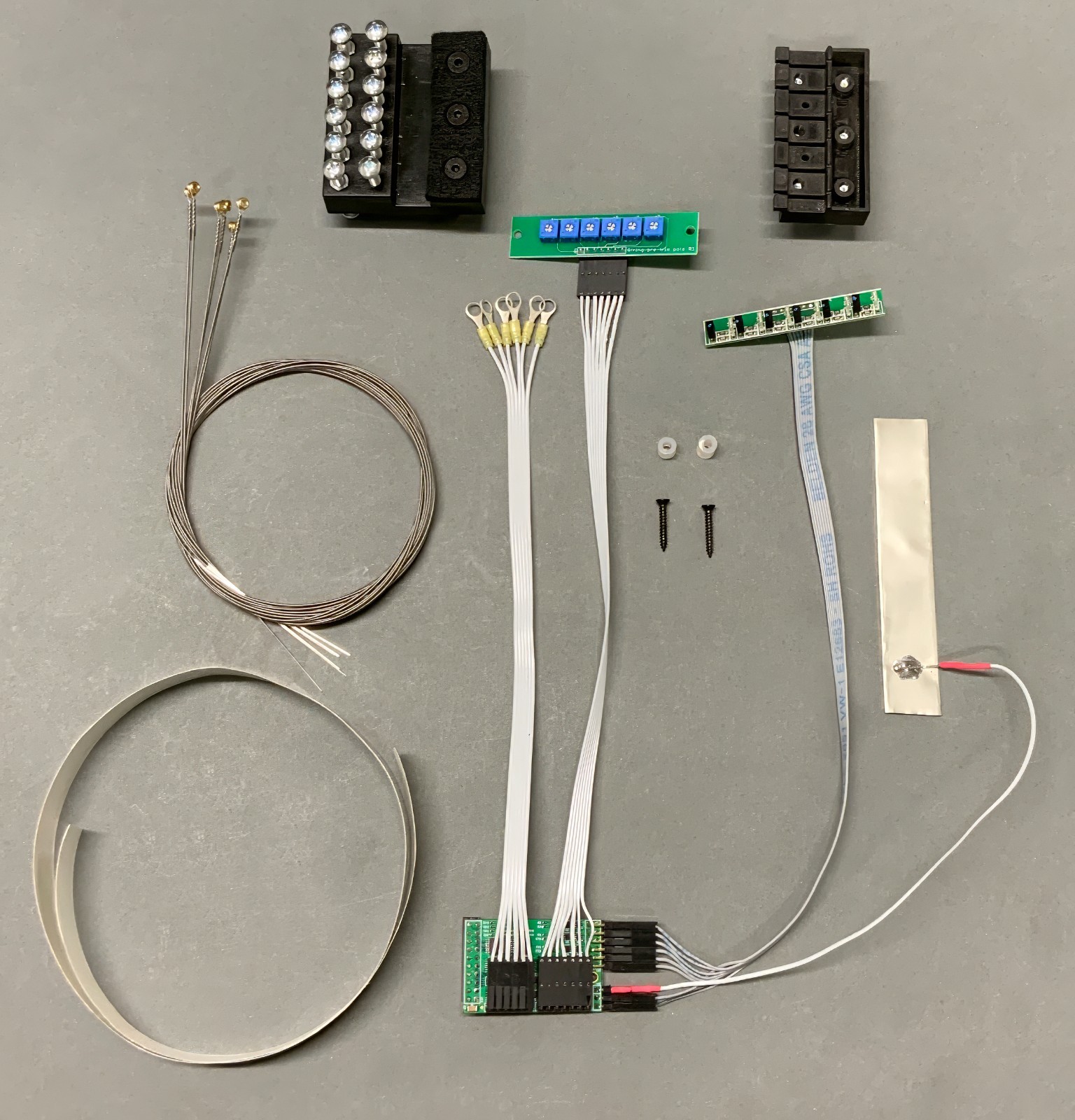

Kit includes:
  • Compact String Preamp Board
  • Optical String Pickup
  • Pickup Screws and Height Adjust Tubing
  • Front and Rear String Attachment Blocks
  • Stainless Screws for the String Blocks
  • Mute Cable
  • Ground Cable
  • Trim Pots PCB
  • Trim Pots PCB Ribbon Cable
  • 6 Guitar Strings (same diameter)

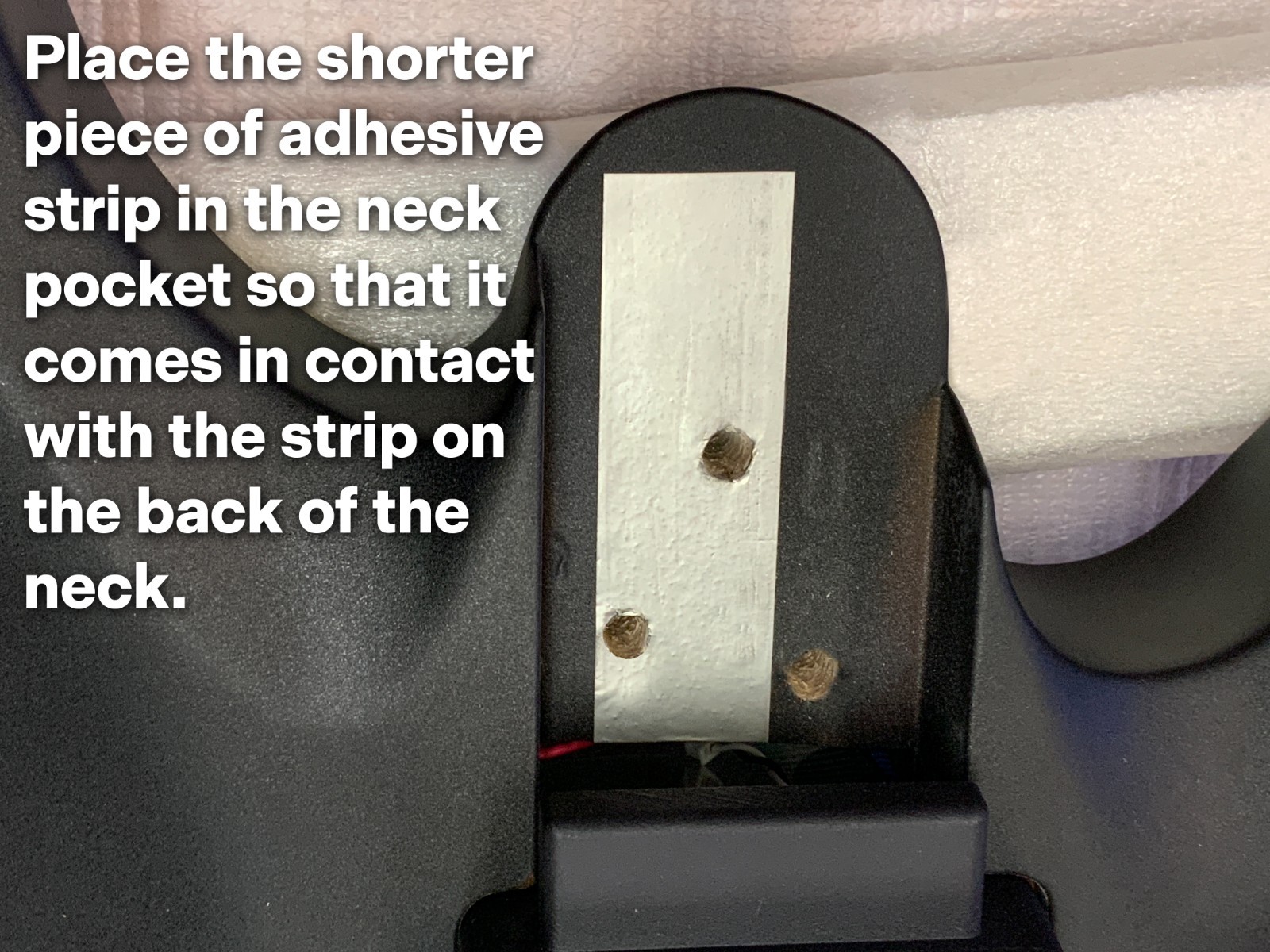

  • Adhesive Nickel Muting Strip (neck and neck pocket sections)
Cover Cap available separately.
